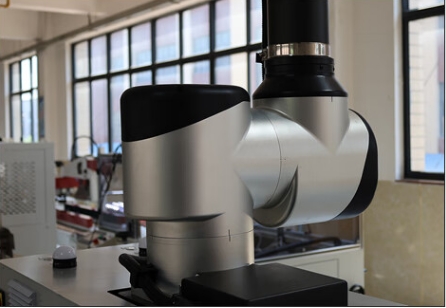

Fully Automatic Pneumatic-Driven Robot Palletizer for Apparel Packaging Solutions

Warranty : 1 Year

Type : Other

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Warranty of core components : 1 Year

Core Components : Other

Condition : New

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type : Cartons

Packaging Material : Paper

Automatic Grade : Semi-automatic

Driven Type : Pneumatic

Voltage : 220V/50HZ

Place of Origin : Anhui, China

Weight : 1025 KG

Key Selling Points : Easy to Operate

Model : 20KG Robot Palletizer

Loading : 20kg

Working Radius : 1650mm

Pallet Specification : 1200*1200*200mm

Vertical Distance : 1700mm(Extender to 2200mm)

Palletizing Speed : 8-12Pcs/Min

Air Pump : 440L/Min

Repeat Positioning Accuracy : ±0.02mm

IP Grade : IP65

Temperature Control : 0-50°C

Price : $25,999.00/sets 1-4 sets

Contact Now

Products Description

Fully Automatic Pneumatic-Driven Robot Palletizer for Apparel Packaging Solutions

Product Paremeter

Carton Erector

Automatic carton erector set auto unpacking, folding of the bottom cover,sealing carton bottom,machine using PLC Intelligent
control panel+ man-machine interface control,folding bottom does not stay,box sealing at the same time to complete the suction,molding,folding bottom,sealing the whole process.

Model	YPK-09	YPK-09M	YPK-09Z
Unpacking Speed	≤12pcs/min	4-10pcs/min	15-18pcs/min
*Carton Size(LWH)*	200-500150-400120-350mm	250-650150-500120-500mm	200-450150-400120-350mm
*Machine Size(LWH)*	190020801492mm	215020801492mm	246020801492mm
Table Height	620+50mm	620+50mm	620mm
Power	200W	240W	640W
Voltage	220V/50HZ	220V/50HZ	220V/50HZ
Adhesive Tape Width	48/60/72mm	48/60/72mm	48/68/75mm
Weight	450kg	500kg	500kg

Automatic Folding Sealing Machine

Automatic fold flaps carton sealing machine will automatically folds the upper cover and automatically pastes the tape up and down without manual work,the use of instant adhesive tape carton for sealing not only has a beautiful sealing effect, but also has a firm sealing.

Model	FXJ-5050Z
Tape Specification	48-75mm
Sealing Speed	0-20m/min
Table Height	600-800mm
*Max Carton Size(LWH)*	600500500mm
*Min Carton Size(LWH)*	200200160mm
Power	400W
Voltage	220V/50HZ
Driving Mode	Left-Right Driving
Weight Of Machine	125KG
Barometric Supply	2/3L,5kgf/cm2
Machine Size	2680900(1480-1680)mm

Robot Palletizer

Stack the packed cartons onto the pallet

Model	SQXZMD-20-V1.0	SQXZMD-30-V1.0
Loading	20kg	30kg
Working radius	1650mm	1600mm
Pallet size	12001200200mm (maximum		12001200200mm (maximum)
Vertical distance	1700mm (expandable to 2200mm)		1700mm (expandable to 2200mm)
Palletizing speed	8-12 pieces/min		8-12 pieces/min
Reference gas consumption	440L/min	480-660L/min
Repeat positioning accuracy	±0.02mm		±0.02mm
Communication method	EtherCAT interface, extension 10		EtherCAT interface, expansion I0
IP grade	IP65		IP65
Temperature range	0-50℃		0-50℃
Maximum power consumption	2500W	4100W
Rated voltage	220V		220V
Machine weight	350KG	440KG
Occupancy area	1260*780mm (excluding pallet and roller line)	1972*1488mm (excluding pallet and roller line)

Product Details

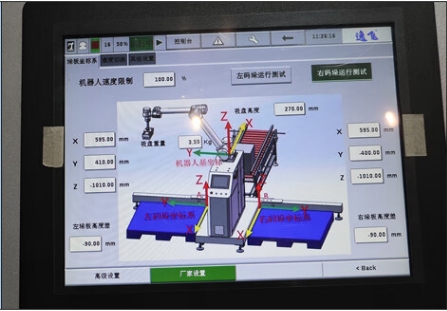

Intelligent control panel, intuitive interface, easy to operation

End effector,Strong and stable suction cup, strong load capacity

Flexible application,Flexible work, operating radius up to 1650mm
