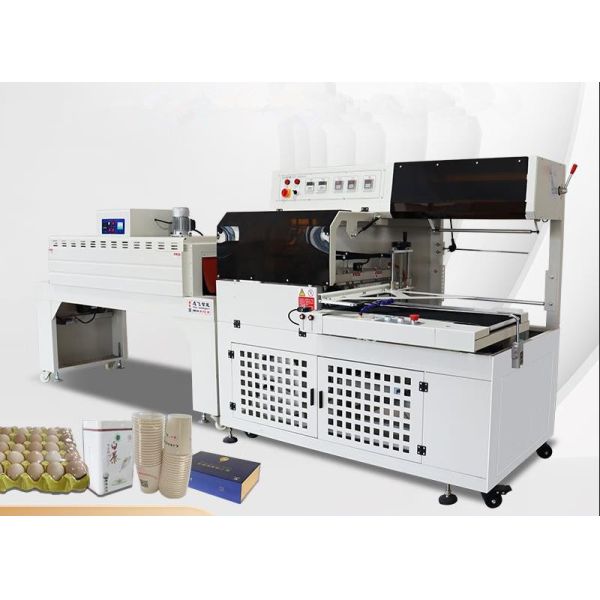

Semi-automatic Multifunction L Shape Sealer Cutter High Speed Shrink Wrapping Machine

Warranty : 1 Year

Type : Other

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : Other

Condition : New

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type : Cartons, Film

Packaging Material : Plastic

Automatic Grade : Semi-automatic

Driven Type : Electric

Voltage : 220V/50HZ, 220V/50HZ/60HZ

Power : 1350W, 1350W

Place of Origin : Anhui, China

Weight : 300 KG, 300kg

Dimension(L*W*H) : 1700x970x145mm

Key Selling Points : Easy to Operate

Model : 450L

Machine Size : 170x97x145mm

Sealing Strip Size : 45*55*15cm

Packing Speed : 15-30Pcs/min

Packing Material : POF

Max Film Width : Less than 55cm

Film Thickness : 0.015-0.06mm

Price : $6,569.00/sets 1-2 sets

Contact Now

Semi-automatic Multifunction L Shape Sealer Cutter High Speed Shrink Wrapping Machine

Recommend Products

Products Description

L Type Sealing And Cutting Machine

1.The L-shaped sealing and cutting machine is composed of two cutters into an "L"

shape. The cutter is fixed, and the two cutters of the edge sealing machine are separated. It has been in the state of sealing and cutting.
2. L-shaped sealing and cutting machines have a lot of restrictions on the packaging product size because the sealing knives are fixed.

Product Paremeter

L Type Sealing Cutting Machine

The product length of this machine is limited,the packaging speed of the machine is 15-30 bags /min,and the packaging material is POF film(Can Customize PVC/PE Film)

Model	450L	550L	650L	750L
Voltage	220V 50/60HZ				220V 50/60HZ
Power	1.35KW				1.35KW
Sealing dimension(LXWXH)	451515cm	556515cm	657515cm	758515cm
Max Film Width	<55cm	<65cm	<75cm	<85cm
Packaging Speed	15-30Pcs/min				15-30Pcs/min
Packaging Material	POF(Can Customize PE/PVC Film)
Film Thickness	0.015-0.06mm

Heat Shrink Wrap Machine

The use of well-known brand configuration,packaging effect is better,durable

Heat Shrink Wrap Machine
Model	BS4525N	BS5530N	BS6530N
*Tunnel Size(LWH)*	1204522cm	1505530cm	1506530cm
*Machine Size(LWH)*	16070130cm	19095138cm	19095130cm
Transfer Speed	0-10m/min			0-10m/min	0-10m/min
Voltage	380V			380V	380V
Power	9.6KW	12KW	12KW
Loading	30kg			30kg	30kg
Machine Weight	140kg	145kg	150kg

Model	BS7530N	BS7540N	BS9540N
*Tunnel Size(LWH)*	1507530cm	2007540cm	1909540cm
*Machine Size(LWH)*	190105130cm	190110138cm	240115140cm
Transfer Speed	0-10m/min			0-10m/min	0-10m/min
Voltage	380V			380V	380V
Power	12KW			12KW	12KW
Loading	30kg			30kg	30kg
Machine Weight	155kg	180kg	200kg

Product details

<< L Type Sealer And Cutter Details >>

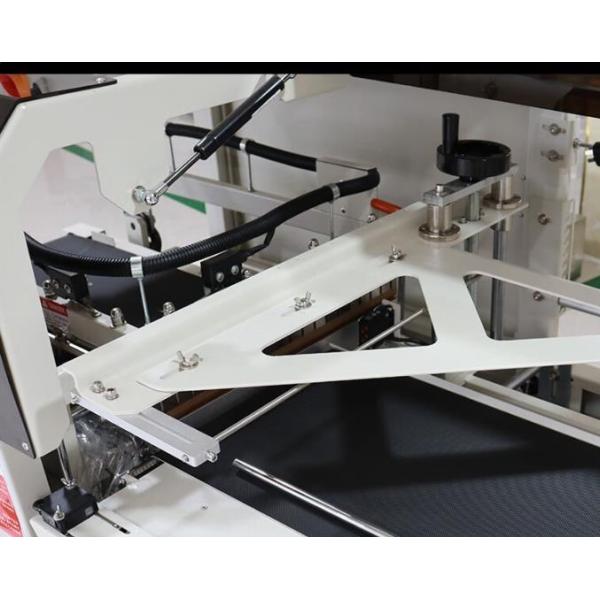

Adjust Product Height And Width

Manually Adjust the console height front and back to fit the product size.

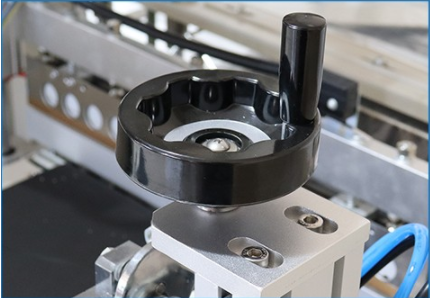

Knife Height Adjustment

Turn the hand wheel to adjust the longitudinal knife opening height.

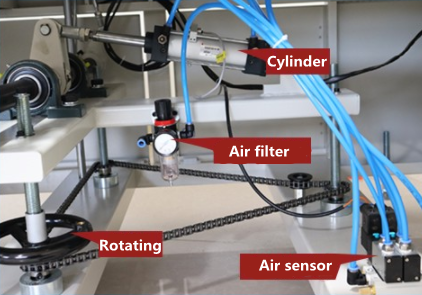

Pneumatic Device

The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.

Safe Use of Protective Cover

The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.

Imported Photoelectric Induction

Automatic detection of products to ensure accurate sealing and cutting positioning.

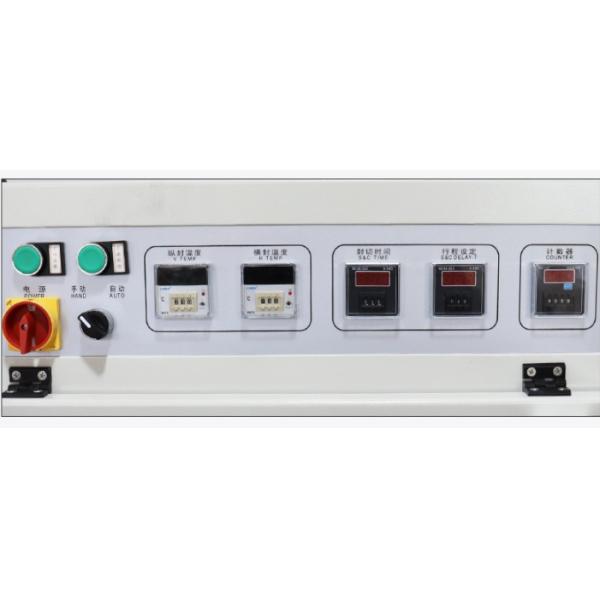

Simple Intelligent Control Panel

Rich functions and more intelligent. Adopts international brand electrical components such as Omron.

<< Heat Shrink Details >>

Air Jet Constant Temperature Heat Shrinkable

Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC,POF, PP and other shrinkable films, especially POF shrinkable films.

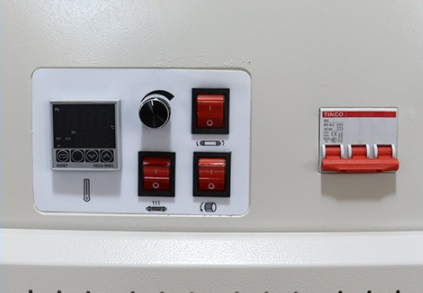

Control Panel

The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.

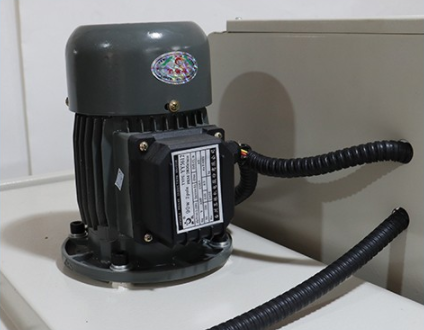

High Power Fan

With high-power motor and strong wind force, hot air circulation is formed in the furnace.

Adopt New Roller

The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time

Sample

The length of sealing and cutting is not limited, and can be packaged with large length objects

Tips:

This machine is pneumatic device, need to connect additional air source can be used, air compressor needs to be purchased by the
customer.

Certifications

Packaging&Shipping

Company Profile

Anhui YIFEI Intelligent Packaging Machinery Co., Ltd. integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery. The machine is affixed with CE certification, meets export standards and is exported to the world.YIFEI has long-term cooperation with many well-known enterprises in China and all over the world,such as BOE, Midea, SF Express, COFCO..... 24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D.
